Fixed Gas Detectors
Includes Controllers, Sensor-Transmitters, Stand Alone Transmitters.
BEACON SERIES CONTROLLERS
RKI’s high-quality Beacon controllers/sensors are suitable for a wide-range of applications: petrochemical plants, refineries, water/wastewater treatment plants, steel, automotive, HVAC and more.
BEACON 110 CONTROLLER
• Low cost versatile solution
• Compact, weatherproof, NEMA 4X enclosure
• 115/220 VAC or 24 VDC operation
• Long life sensors (2+ years typical)
• Accepts RKI LEL/O2/H2S/CO direct connect sensors
• Accepts any 4-20 mA transmitter
• Audible alarm with reset button
• Two programmable alarm levels
• Built-in trouble alarm with relay
• Relay rating 10 amps, form C
• Provides 4-20 mA output
Additional Information: Beacon 110 Data Sheet
BEACON 200 CONTROLLER
• Simultaneous readout on 2 channels
• Two alarm levels per channel
• Discrete and common relays
• NEMA 4X enclosure
• 4-20 mA outputs
• Proven, long-life sensors for a wide variety of gases
• Accepts any 4-20 mA transmitter input (24 VDC)
• Easy to install, operate and expand
Additional Information: Beacon 200 Data Sheet
BEACON 410A CONTROLLER
• Simultaneously monitor up to 4 channels
• Digital display of all 4 channels
• LEL/O2/CO2/toxic direct connect sensors
• Accepts any 4-20 mA transmitter, 2 or 3 wire
• 3 programmable alarm levels per channel
• Up to 3 configurable alarm relays per channel
• Zero follower automatically compensates sensor drift
• 4-20 mA analog & Modbus digital output standard
• 115 / 220 VAC or 24 VDC operation
• Audible alarm with silence feature
• Alarm reset switch
• Built in trouble alarm with relay
• Weather proof NEMA 4X enclosure
• Optional strobe & battery backup available
Additional Information: Beacon 410A Controller Datasheet
BEACON 800 CONTROLLER
• Capable of up to 8 separate channels
• Digital display of all 8 channels simultaneously
• Compact, weatherproof, NEMA 4X enclosure
• 85 to 264 VAC or 24 VDC operation
• Long life sensors (2+ years typical)
• Accepts any 4-20 mA transmitter
• Audible alarm with reset button
• Two programmable alarm levels per channel
• Common alarm and fail relays
• Relay rating 3 amps, form C
• Low cost versatile solution
Additional Information: Beacon 800 Data Sheet
EXPLOSION PROOF TRI-SENSOR HEAD
The RKI direct connect series gas sensors are highly reliable and very cost effective for the detection of common gas hazards. The direct connect series are available for LEL, Oxygen, H2S, and CO for a variety of RKI’s controllers. All sensors are explosion-proof with flame arrestors, and approved for use in hazardous locations.
The tri-sensor head can be used either indoors or outdoors. The flame arrestors for the explosion-proof versions utilize a patented coating which make them water repellent. Also, splash guards are available for use in very wet environments.
Additional Information: Explosion Proof Tri-Sensor Head Data Sheet

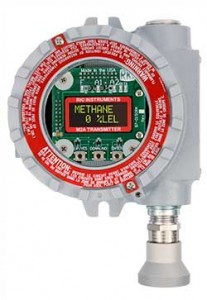

STAND ALONE EXPLOSION PROOF TRANSMITTER
The RKI M2A™ is a state-of-the-art transmitter that can operate as an independent, stand-alone system or as part of an integrated system.
The M2A connects with an analog or digital signal to virtually any controller, PLC, or DCS. Setup procedures are simplified with user friendly push buttons and LCD menus. It utilizes a magnetic wand technique for performing non-intrusive calibration.
The transmitter provides a 4-20 mA output in addition to a Modbus digital output. It also has two levels of alarms with relays, plus a fail alarm with relay. A digital display of the gas concentration, as well as alarm and status lights, can be viewed through the front window.
Additional Information: M2A Stand Alone Datasheet
DIFFUSION SENSOR/TRANSMITTER
The RKI S2 series gas sensor/transmitters are highly reliable and very cost effective for the detection of common gas hazards. The S2 series are available for LEL, H2 Specific (LEL, and ppm), Oxygen, H2S, CO, and for a variety of toxic gases.
The transmitters for LEL, H2 Specific, Oxygen, H2S, CO2, and Carbon Monoxide are explosion-proof with flame arrestors, and approved for use in hazardous areas (Class l, Groups B, C, D). An optional non-explosion proof version is available for oxygen, H2S, CO, and CO2 in non-hazardous atmospheres. LEL sensors are available using catalytic bead and infrared technologies.
Additional Information: Diffusion Sensor/Transmitter Data Sheet
LOW COST TRANSMITTER
The RKI low cost CO/H2S transmitter is a highly reliable and very cost effective basic 4-20 mA transmitter for the detection of carbon monoxide and hydrogen sulfide. The electronics are protected inside a plastic enclosure to avoid damage from mechanical abuse, water, dust or corrosion. Sensors for H2S and CO are long life and typically last 2 – 3 years.
Additional Information: Low Cost Transmitter Data Sheet
RKI Instrumentation Website for more products and solutions.
